CS 6457 Animation

Breadcrumbs: CS 6457

Part 1 - Animation History

Early Non-Interactive Animation

Prehistoric Cave Art

• Archaeologists found cave art with animals having multiple legs in different positions
• Suggests frames of movement (e.g., boar with legs in different stride positions)
• Speculation: Flickering firelight would randomly illuminate different poses, creating primitive animation effect

Shadow Play and Puppetry

Shadow Play:

• Early form evolved over many years
• Human actors or puppets moving in front of light source
• Shadows projected onto viewing surface or translucent backdrop

Puppetry:

• Long tradition dating back at least 4,000 years (possibly further)
• Articulated artifacts controlled by strings, sticks, or directly (sock puppets)
• Labor-intensive: required human performer
• Demonstrates history of animating 3D forms (vs. 2D)

Magic Lantern (1600s)

Technology:

• Projected images using flame light source through painted/stained glass slides
• Used lens system to project onto wall
• Later evolution: mechanical components added to plates
• Multiple glass layers could be moved with levers/dials
• Each animated slide was one-off with specific mechanics

Evidence:

• 1659 sketch of skeleton showing frames of animation for magic lantern slide

Automata

Concept:

• Removed human operator from puppetry, replaced with machine automation
• Similar technology to clocks: gears, levers, wind-up springs, weight-based powering
• Popular antiques, found in music boxes
• Some elaborate examples: automata that can write signatures

Modern Evolution:

• Da Vinci’s mechanical lion plans (recreated in modern times)
• Disney animatronics in theme parks (Hall of Presidents, Pirates of Caribbean)
• Uses computerization with latex skin over robotic frames
• Can perform facial features

Frame-Based Animation Devices

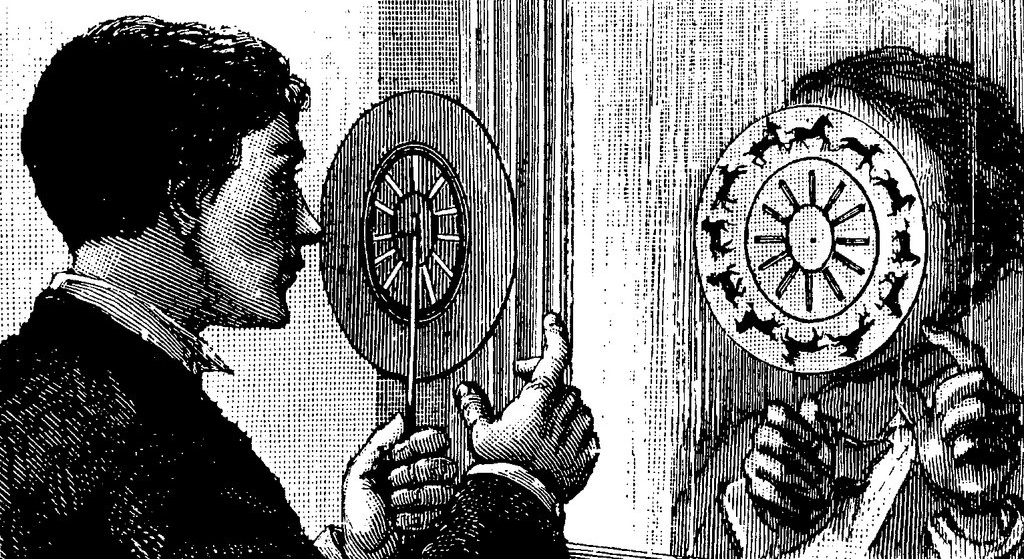

Phenakistoscope (1833)

Mechanism:

• Pinwheel with radial slits cut into perimeter
• Hold up to mirror with artwork facing away
• Look through slit while spinning
• Each slit aligns eye with one image at a time
• Frames are curved shapes (non-rectangular)

Content:

• Limited narratives: man riding horse, bird flying
• Single figure in motion

Zoetrope

Improvements over Phenakistoscope:

• Eliminated need for mirror
• Cylinder shape instead of disc
• Look down at angle through slits
• See one frame at a time
• Animation speed controlled by spin rate

Flip Book/Kineograph

Development:

• Came several years after zoetrope
• Hard to date exactly (straightforward concept, possibly experimented with before commercialization)
• Hand-drawn early examples
• Later versions used original photography

Film and Early Cinema

Film Camera Mechanics

Process:

• Similar to still photography: optics, film exposure, chemical development
• For moving pictures: rapid sequence of frames on film reel
• Film advances one frame, immediately stops (not constant speed)
• Shutter opens after film stops, exposes to light, then closes
• Film accelerates to next frame
• Creates mechanical noise from rapid acceleration/deceleration

Challenges:

• Avoid vibrations during light exposure
• Timing for smooth capture
• Early films had jittery motion due to these difficulties

Arrival of a Train at La Ciotat (Early Film)

• One of earliest well-known films
• Simple: train arriving at station coming toward camera
• Novel experience: first audiences scared, jumped out of seats
• Very influential, spawned entire industry

Cartoon Animation

Fantasmagorie (1908)

• Perhaps one of first cartoons
• Very primitive animation
• Artist created frame-by-frame
• Technology: hadn’t figured out optimal method for getting lines/colors onto film
• Quickly developed and heavily commercialized

Rotoscope (Max Fleischer, 1915 Patent)

Process:

• Projects one film frame at a time (often human form) onto frosted glass
• Artist lays paper over projection and sketches/traces
• Captures each frame one at a time
• Photographs individual drawn frames
• Plays back at appropriate speed

Benefits:

• Gets perspective and dimensions correct following human movement
• Nice smooth animations
• Seamless transitions between rotoscoping and artistic embellishment

Fleischer Studios:

• first use of rotoscoping
• Created Coco the Clown (early example)
• Also made Betty Boop
• Coco could do impossible moves through artistic creativity

Disney’s Use of Rotoscoping

Early Disney Films:

• Used rotoscoping in earliest movies
• Example: Snow White - actress Marge Champion performed all captured footage
• Edges traced using Fleischer’s rotoscope technology

Transition to Live Action Reference:

• Disney moved away from precise rotoscoping
• Filmed actors but used artistic interpretation instead of precise tracing
• Focused on specific aspects: physical performance, facial expressions
• Could exaggerate and have more control than being confined by silhouette constraints
• Example: Alice in Wonderland

Why Disney Abandoned Rotoscoping:

• Snow White vs. Dwarfs comparison shows distinct difference
• Snow White lacks expressiveness and detail compared to dwarfs
• Artistic expressiveness of animator carries through better without rotoscoping constraints

Disney’s 12 Principles of Animation

Most Important Principles:

1. Squash and Stretch:
   • Ball stretches in direction of travel (approximates motion blur)
   • Squashes on collision (exaggerated)
   • Stretching during acceleration (not collision-based)
   • Applies to objects, facial expressions, human form movement
   • Some aspects occur in real life (person squatting before jump, stretching during leap)
2. Exaggeration:
   • Combined with squash and stretch for great effects

Other Principles:

• Important for storytelling: anticipation, staging, etc.

Early Interactive Animation

Interactive Automata (Late 1800s - Early 1900s)

Found in Penny Arcades:

• Mechanical games with basic analog circuits (relays)
• Examples: fighting figures, bowling, baseball, Rock’em Sock’em Robots, hockey, foosball
• Human-powered interactions
• Combined physical animations (puppet-like) with automata concepts

Simulators

Link Trainer (WWII):

• Flight simulator for pilot training
• Couldn’t create animations of external environment (other aircraft, terrain)
• Focused on instrument panel simulation
• Driven by gears and simple electric signals
• Showed: elevation, speed, airplane angle
• Responded to user controls with tactile feedback
• Elaborate state machine implementation

Aetna Drive-O Trainer:
Technology:

• First-person perspective of driving projected on screen
• Simulated controls: steering wheel, gas pedal, gear change

Classroom Use:

• Multiple students with own steering wheels
• Shared viewing experience
• Respond correctly within time window (like QuickTime events)
• Scoring: contraption punched holes in card, run through card reader for pass/fail

Interactive Feature:

• Special single-projector, single-student configuration
• Film reel advance controlled by user input
• Film paused waiting for correct input
• Wouldn’t continue at full speed until proper input received
• On-screen animation dictated by user controls

---

Part 2 - 2D Animation in Video Games

Early Video Game Graphics

Vector Graphics (First Video Games)

Dispute over “first” video game:

• Tennis for Two (1958): Made with analog circuits and mechanical relays, drove oscilloscope
• Space War (1962): Ran on PDP-1 with actual CPU, generally considered first true video game

Vector Display Technology:

• Used cathode ray tube (CRT) with electron beam controlled by magnetic yoke
• Beam strikes phosphor-coated glass which glows then decays
• Unlike raster displays (scan lines), vector displays have arbitrary aim
• Two separate voltages control vertical and horizontal direction
• Can toggle beam on/off to draw arbitrary lines
• Advantages: smooth, crisp lines without aliasing
• Used in oscilloscopes and early games like Space War

Raster Display Games

Pong (1972)

• One of first raster display games
• Used discrete logic (not CPU) - wiring logic gates together
• Very limited graphics: could only draw lines or axis-aligned polygons
• Extremely difficult development due to discrete logic constraints

Taito Basketball (1974)

• First game to use sprites
• First game to feature human form on screen
• Sprites: arrays of pixel values copied to different screen locations
• Separated artistic content from programming logic
• Artists could create pixel art, programmers worked with arbitrary sprite data

Text Mode Games

Early Personal Computers (IBM PCs):

• Initially only capable of text mode (for business: documents, spreadsheets)
• No graphical capabilities
• Extended character set included line segments and fill patterns for organizing text
• Creative developers used these to create games

Castle Adventure (1984):

• Everything on screen is a text character
• Character data swapped quickly for animation effects
• Short-lived approach as PCs quickly developed better capabilities

Sprite-Based Animation

8-bit Era (Golden Age)

• Examples: Super Mario Brothers, Street Fighter 2
• Introduced color and animated sprites
• Animated sprites: swapping from one sprite to next in similar poses

Technical Implementation:

• Early systems: sprites referenced color palette (not RGB values directly)
• Limited memory - couldn’t store full RGB frame buffer
• Each pixel had 8 bits (or similar) for palette lookup
• Special hardware support with dedicated channels for efficient sprite copying
• Limitations: maximum number of sprites per frame, rectangular axis-aligned dimensions only
• No sprite rotation until later systems

Aesthetic Legacy:

• Modern games could rotate/scale sprites and use full RGB colors
• Typically don’t for authenticity to 8-bit/16-bit aesthetic
• Limitations of era became part of the art style

Color Cycling (Palette Animation)

Technique for Animating Backgrounds:

• Manipulate palette itself rather than pixel data
• Shift colors in circular buffer within palette range
• Example: waterfall animation - shift blues/cyans through palette positions
• Pixels reference same palette position, but palette colors change
• Effective for: moving water, waterfalls, rain, snow, falling ashes
• Common in PC adventure games of late 80s/early 90s

Alternative Animation Approaches

Dragon’s Lair (LaserDisc Game)

Technology:

• Used analog LaserDisc media with digital indexing
• Avoided some limitations of sprites and other techniques of the era but sacrificed interactivity
• Very high quality graphics (all benefits of traditional animation)
• Computer interpreted joystick/buttons for QuickTime events
• Could jump between scenes quickly if optimized on disc layout

Gameplay:

• Limited interactivity - correct response or death scene
• Extremely popular in arcades, drew big crowds
• Made by Don Bluth (animator who worked on Secret of NIMH, American Tail, Land Before Time)
• Short lifespan - sacrificed too much interactivity as technology improved

Rotoscoped Gaming

Definition: Tracing over live-action footage frame-by-frame for realistic animation

Notable Examples:

• Karateka (1984): Early work by Jordan Mechner, limited frames due to memory constraints
• Prince of Persia (1989): Jordan Mechner’s brother as source for prince, Errol Flynn’s Robin Hood for fighting
  • Very fluid animation with enough frames
  • More engaged gameplay than Dragon’s Lair
  • Movement tied to animations (prevents foot sliding)
  • Sacrificed some control compared to sprite-based games
• Another World/Out of This World: Eric Chahi filmed himself, created own rotoscoping tools
• Flashback (1992): Popular, available on Nintendo Switch

Amiga Dragon’s Lair Port:

• Computer-supported rotoscoping for Amiga (and other platforms)
• Vectorized foreground characters from LaserDisc frame-by-frame
• Backgrounds: scans of original artwork
• Fit onto 8 floppies (impressive compression)
• Overlaid 2D polygons/lines on background scans

Early 3D Graphics

Vector-Based 3D

Battlezone (1980):

• Actual vector display with wireframe 3D
• Simplified processing: no occlusion, hidden surface, or polygon sorting concerns
• Drew everything as wireframe

2D Sprites with Scaling/Rotation

Super Nintendo Mode 7:

• Specialized hardware for moving backgrounds
• Could scale and rotate textures
• Used for parallax effects and foreshortening
• Example: Mario Kart track (uneven scaling for depth), Super Mario World Bowser fight Limitations:
• Only intended for backgrounds, not individual sprites
• Required specialized processing

Part 3 - 3D Animation in Video Games

Billboards (2.5D)

Wolfenstein 3D and Doom:

• Ray casting for indoor 3D environments (walls)
• Enemies rendered as 2D textures (billboards)
• Scaled for distance
• Multiple perspectives captured (front, back, left, right, angles)
• Swapped based on viewing angle

Wing Commander:

• Space combat with scaled/rotated sprite spaceships
• Rough look but conveyed 3D spatial dimension
• Many different perspective angles needed

Problem: Huge number of angles needed for full 3D rotation

• Motivated transition to proper 3D models

Quake (Early 3D Animation)

Implementation:

• First to use proper 3D character models
• Keyframe animation at 10 fps (even if game ran faster)
• Each frame: array of ordered vertices applied to triangle mesh
• Triangles reference vertex indices, not actual positions
• Very few triangles/vertices due to memory constraints

Storage:

• Each animation frame stores complete vertex table
• Not scalable - memory consumption explodes with more vertices
• UV texture coordinates map to skin bitmap

Computer-Assisted Animation

Procedural Animation

Definition: Write algorithm to animate object

Best For:

• Straightforward, repeating animations
• Clocks and machinery (cyclic movement)
• Hovercrafts (sinusoidal movements)
• Sometimes easier than authoring system

Example: Uncharted 4 clock tower (likely procedural for gears)

Physically-Based Animation

Definition: Integration with physics simulation

• e.g. masses, forces, inertial properties
• Realistic but difficult to control

Example: Just Cause 3

• Grappling hook attaches characters to exploding propane tanks
• Characters carried off by physics
• Rockets attached to cars for funny effects

Motion Capture (Mocap)

Concept:

• Evolution of rotoscoping for 3D
• Map actual performances to game objects
• Full 3D data captured
• Captures styles, subtle nuances and realism
• You must observe someone do something
• Difficult to edit

Comparison to Rotoscoping:

• Rotoscoping lacks full 3D data
• Could rotoscope from multiple perspectives (manual mocap)
• Modern mocap uses computer vision

Examples:

• Naughty Dog (Last of Us, Uncharted): facial expressions and full body capture
• 4D Boxing (early 90s): possibly rotoscoping from multiple perspectives, very fluid animations

Teddy (1999-2000):

• Draw on screen, generates 3D
• Assumes symmetries and minimal volume
• Intuitive interface for 3D structure creation
• Potential for animation authoring similar to cartoon animation

Skeletal Animation Revolution

Concept:

• Abstract skeleton (wireframe) deforms mesh
• Skeleton stored instead of all vertices
• Mesh can be arbitrarily complex
• Much more memory efficient

Storage Requirements:

• Root bone (hip): 3 or 6 degrees of freedom (rotation only, or rotation + translation for root motion)
• Other bones: 1-3 degrees of freedom depending on joint type
• Keyframes store only skeleton pose (array of floats)
• Can interpolate for arbitrary frame rates

Mesh Deformation:

• Each vertex has weighted list of bones (typically max 2-4 bones)
• Weights determine influence of each bone on vertex
• Example: elbow vertices weighted between upper arm and forearm bones
• Rigging: process of aligning skeleton and assigning bone weights

Advantages:

• Huge memory savings vs. mesh animation (Quake MDL format)
• Works well with animation blending
• Animation portability/reuse (not tied to specific mesh)
• Simplified authoring (work with simple skeleton)
• Inverse kinematics support

Disadvantages:

• Implementation difficulty
• Computational overhead (but can offload to GPU for parallelization)
• Realistic mesh deformations difficult (e.g., elbow self-intersection)

Half-Life (1998):

• One of first games to effectively use skeletal animation
• Enabled in-game cutscenes and novel alien creatures
• Could not have been done without skeletal animation — saved tons of memory
• Non-humanoid skeletons (e.g., tentacle creature)

Advanced Animation Techniques

Squash and Stretch in 3D

Challenge: Traditional animation principle difficult with skeletal animation

Solution:

• Add scaling factors to bones (additional degrees of freedom)
• Add extra bones for body deformation
• Example: Jak and Daxter
  • Torso compresses/extends during run cycle
  • Body stretches 50% during jump start
  • Compresses into ball at apex
  • Stretches again during fall
  • Daxter’s body reinforces arc of jump

Trade-off: Increased memory for additional degrees of freedom, but achievable

Root Motion

Concept:

• Root bone includes translation (6 degrees of freedom: XYZ translation + XYZ rotation)
• Animation moves character through environment
• Game engine interprets root motion incrementally frame-to-frame

How It Works:

• Detect offset from root motion
• Re-center model to game object
• Game object moves according to animation
• Capsule collider follows animation

Benefits:

1. Prevents foot sliding/skating
   • Walking/running has sinusoidal speed variation (accelerate when falling forward, decelerate when foot lands)
   • Programmatic constant speed looks unnatural (feet sliding around, like as if on ice)
   • Root motion from mocap captures this naturally
2. Large movements (lunges, attacks)
   • Animation moves collider with character
   • Physics can restrict movement (e.g., wall collision)
3. Authoring benefits
   • Artist controls character movement
   • Declarative approach (no code needed)

Constraints (Unity):

• Root transform projected from hip bone onto Y plane (ground)
• Can enable/disable per dimension (e.g., XZ only, not Y for gravity)
• Can enable/disable rotation
• Useful for chase camera (avoid shaking)

Animation Blending

Concept:

• Interpolate between multiple animations in real-time
• Weighted average creates smooth transitions
• Maps well to analog controls (joystick)

Example:

• Full forward joystick: 100% running forward animation
• Slight left deflection: 90% forward, 10% hard left turn
• Full left: 100% hard left turn animation

Implementation (Unity Blend Tree/Map):

• Map user inputs (XY joystick) to blended animations
• Define interpolation points in coordinate system
• All declarative, no programming needed
• Works with root motion

Benefits:

• Less authoring/mocap work
• Less storage requirements
• Continuous space of animation types
• Full envelope of character movement

Bunny Hop Problem:

• Occurs when blending dissimilar animations
• Both feet move together unnaturally
• Solution: Animations must be aligned
  • Same number of steps in loop
  • Feet hit in same order
  • Same starting point in cycle
• Clip lengths don’t need to match (normalized timeline)

Animation Masks and Layers

Purpose: Blend dissimilar animations without bunny hop issues

Use Case:

• Upper body: rifle firing animation
• Lower body: walking, running, crouching animations
• Record rifle firing from standing position
• Mask isolates upper body for blending

Benefits:

• Minimize mocap work
• Reduce storage (fewer animation permutations)
• Works with inverse kinematics

Match Targets

Purpose: Align animations precisely with world coordinates

Problem:

• Character jumping to grab ledge
• Player input position varies
• Need real-time correction

Solution:

• Identify target position in animation timeline
• Set world coordinate goal for bone (e.g., hand)
• Apply linear interpolation (LERP) correction over time
• Correction proportional to animation progress

Use Cases:

• Grabbing ledges
• Landing jumps precisely
• Opening doors
• Any animation requiring environmental alignment

Inverse Kinematics (IK)

Forward Kinematics:

• Parent dictates transform
• Children follow in hierarchy
• Standard scene graph operations

Inverse Kinematics:

• Set position of leaf node (e.g., hand)
• Calculate parent transforms backwards
• Non-trivial to compute

Challenges:

1. Sometimes impossible to solve
2. Ambiguous - infinitely many valid solutions
   • Example: Hand reaching flashlight - many valid elbow positions
3. Joint wobbling/snapping between solutions

Unity Implementation:

• Built-in IK limited to humanoid extremities
• Can set: left/right foot, left/right hand positions/rotations
• Special “look at” for head
• Position weight and rotation weight control override

Use Cases:

• Pressing buttons at various heights
• Picking up objects
• Adjusting feet on varied terrain
• Character looking at targets (head tracking)
• Authoring: drag hand, arm follows

Technique:

• Play base animation (e.g., button press at waist height)
• Weight ramps up as hand approaches target position
• IK overrides to actual button position
• Weight = 0: animation only
• Weight = 1: IK fully controls

Notable Early Examples:

• Terra Nova: Feet controlled by animation + IK correction, torso hovers on capsule collider
• Trespasser: Dinosaurs use box colliders, ray cast for foot ground detection, extends/bends legs

Retargeting Skeletal Animation

Problem: Mocap skeleton dimensions must match rigged model

Solution: Muscle Space (Unity):

• Define joint limits for each skeleton
• Set defaults, allow overrides in Avatar
• Normalize joint movement in animation keyframes
• Map to new skeleton with its constraints

Effectiveness:

• Generally works 80-90% of time
• May have inter-penetration issues (e.g., Rufus from Street Fighter IV - folded arms)
• Some tools allow corrections

Benefits:

• Reuse humanoid animations across different character models
• Grab animations from various sources

Rotations and Quaternions

Problem with Euler Angles (XYZ rotations):

• Intuitive to think about
• Gimbal lock: certain configurations prevent desired rotations
• Example: First-person shooter looking straight up - can’t turn left/right

Solution: Quaternions:

• Avoid gimbal lock
• Reliable linear interpolation
• Essential for blending animations

Why Game Engines Use Quaternions:

• Can convert quaternion to Euler
• Flexible rotation representation
• Critical for interpolation in skeletal animation
